LED Drivers / LED Power Supplies

Metro Constant Voltage ELV Class 2 Dimmable LED Drivers are available at 24 VDC, ranging from 9W to 100W. Triac dimmable, compatible with both forward phase and reverse phase. With integral wiring compartments, they are supplied with a 120 VAC Cord & Plug, and a low voltage lead wire with 5.5 mm/2.1 mm barrel jack. Available also with optional hardwiring enclosures, 1-10v dimming, and DALI controllable versions. Compatible with most electronic control systems -- by Lutron, Crestron, Honeywell Incomm, etc.

(Use with all M-LIGHT LEDs [WHITE, TUNABLE WHITE, RGB, RGBW])

← Back To LED Lighting

M-DRIVER-09-CV

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (9W, 24 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally, friendly PC cover
  • Class 2
  • Short circuit and overload protected
  • Integral wiring compartment
Download Specification Sheet

M-DRIVER-12-CV

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (12W, 24/12 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • Short circuit and overload protected
  • Integral wiring compartment
  • Triac, forward phase dimming compatible
  • 120 VAC cord & plug
  • 18 AWG low voltage lead wire with barrel jack
Download Specification Sheet

M-DRIVER-20-CV

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (20W, 24 DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • Short circuit and overload protected
  • Integral wiring compartment
  • Triac, forward phase & reverse phase dimming compatible
  • 120 VAC cord & plug
  • 20 AWG low voltage lead wire with barrel jack
Download Specification Sheet

M-DRIVER-30-CV

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (30W, 24/12 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • Short circuit and overload protected
  • Integral wiring compartment
  • Triac, forward phase dimming compatible
  • 120 VAC cord & plug
  • 20 AWG low voltage lead wire with barrel jack
Download Specification Sheet

M-DRIVER-40-CV

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (40W, 24/12 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • ETL Listed
  • Short circuit and overload protected
  • Integral wiring compartment
Download Specification Sheet

M-DRIVER-60-CV

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (60W, 24/12 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • Short circuit and overload protected
  • Integral wiring compartment
Download Specification Sheet

M-DRIVER-80-CV

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (80W, 24/12 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • Short circuit and overload protected
  • Integral wiring compartment
Download Specification Sheet

M-DRIVER-100-CV

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (100W, 24/12 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • Short circuit and overload protected
  • Integral wiring compartment
Download Specification Sheet

LED Drivers / LED Power Supplies
(For Metro 3-Way Power/Data Outlets)

Our patented 3-way Switching Low Voltage Power & Data Outlets work seamlessly with our M-LIGHT LEDs, and offer true 3-way switching from either side of a King or Queen bed without the need for an Electrician. Our 3-Way UL Listed Constant Voltage ELV Class 2 Dimmable LED Drivers are available at 24 VDC, ranging from 30W to 96W. Triac dimmable, Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers. With integral wiring compartments, they are supplied with a 120 VAC Cord & Plug, and a low voltage lead wire with 5.5 mm/2.1 mm barrel jack.

(Use with M-LIGHT-WHITE LEDs)

← Back To LED Lighting

M-DRIVER-30-CV-3WY

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (30W, 24/12 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • UL Listed
  • Short circuit and overload protected
  • Integral wiring compartment
Download Specification Sheet

M-DRIVER-36-CV-3WY

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (36W, 24/12 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • UL Listed
  • Short circuit and overload protected
  • Integral wiring compartment
Download Specification Sheet

M-DRIVER-60-CV-3WY

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (60W, 24/12 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • UL Listed
  • Short circuit and overload protected
  • Integral wiring compartment
Download Specification Sheet

M-DRIVER-96-CV-3WY

Metro ELV Constant Voltage*, Class 2, Dimmable LED Drivers (96W, 24/12 V DC). Fireproof, Environmentally friendly PC cover. Short Circuit and overload protected. Integral wiring compartment.

* Constant Current Versions are available, not shown.

  • Fireproof, environmentally friendly PC Cover
  • Class 2
  • UL Listed
  • Short circuit and overload protected
  • Integral wiring compartment
Download Specification Sheet

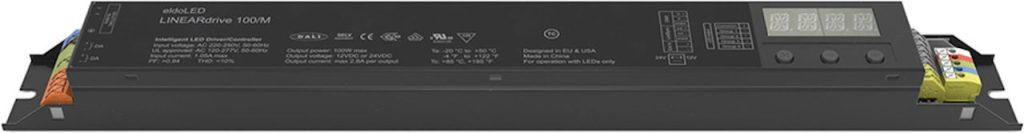

LINEARdrive

LINEARdrive 100/M delivers 8A and is DALI and DMX compatible. LINEARdrive 100/M has four separately controllable LED outputs, which can be used for wide range of full-colour (RGBW), dynamic LED lighting applications.

You can configure the driver over its intuitive, 3-button user interface with display: it lets you configure the number of channels, DMX or DALI settings for networked mode and show, colour and dim values for standalone operation.

Features

  • HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture
  • Tunable dynamic response
  • LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls

Benefits

  • Industry-best dimming performance for your fixture/application
  • Dynamic response can be tuned to fit any content - from exceptionally smooth fades in architecture to fast-paced video in entertainment
  • Compatible with enclosure system
Download Specification Sheet

Controllers

DMX data messages are sent directly from the STICK to a DMX compatible power supply (sometimes called a «DMX Driver»). The power supply listens to the DMX messages and supplies the power to the lighting fixture. For example, an LED strip may use a 12V DMX power supply. The DMX messages are then passed on to the next lighting fixture or DMX driver.

← Back To LED Lighting

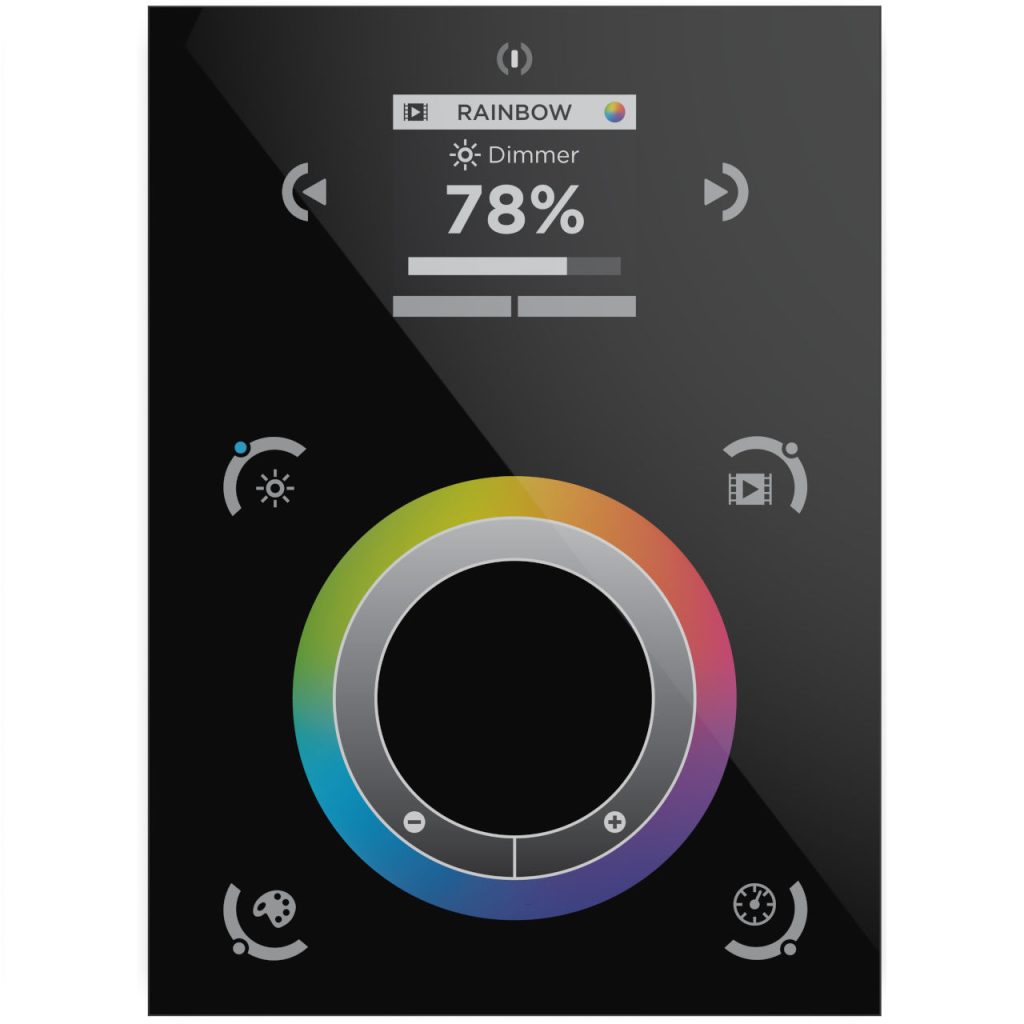

STICK-DE3

DMX data messages are sent directly from the STICK to a DMX compatible power supply (sometimes called a «DMX Driver»). The power supply listens to the DMX messages and supplies the power to the lighting fixture. For example, an LED strip may use a 12V DMX power supply. The DMX messages are then passed on to the next lighting fixture or DMX driver.

Download Specification Sheet

STICK-KE2

DMX data messages are sent directly from the STICK to a DMX compatible power supply (sometimes called a «DMX Driver»). The power supply listens to the DMX messages and supplies the power to the lighting fixture. For example, an LED strip may use a 12V DMX power supply. The DMX messages are then passed on to the next lighting fixture or DMX driver.

Download Specification Sheet

STICK-GU2

DMX data messages are sent directly from the STICK to a DMX compatible power supply (sometimes called a «DMX Driver»). The power supply listens to the DMX messages and supplies the power to the lighting fixture. For example, an LED strip may use a 12V DMX power supply. The DMX messages are then passed on to the next lighting fixture or DMX driver.

Download Specification Sheet

Accessories, Switches, Cables

← Back To LED Lighting

PIR Door Proximity Sensor

Recessed IR Sensor for Closets & Cabinets

For use with Metro M-LIGHT LEDs, M-LINEAR Fixtures, and M-DRIVER Power Supplies

Features

  • Recessed Mounted
  • Passive Infrared Sensor Switch
  • Door/Proximity Activated
Download Specification Sheet

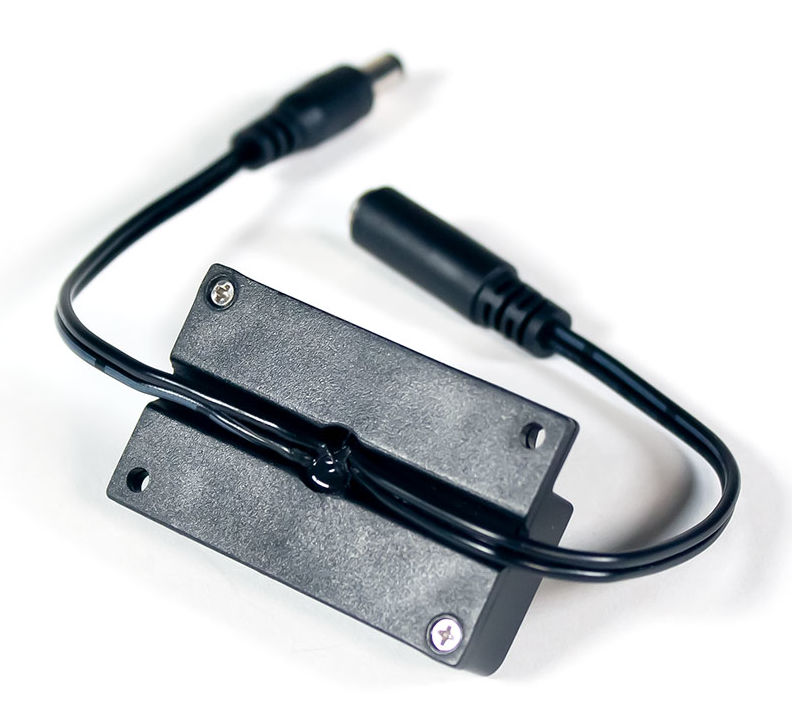

PIR Motion Sensor

Recessed PIR Sensor for Closets & Cabinets

For use with Metro M-LIGHT LEDs, M-LINEAR Fixtures, and M-DRIVER Power Supplies

  • Range up to 2m and 40°
  • Dual passive infrared sensor switch
  • Can be positioned inconspicuously
  • Multi-directional wireway
  • Factory adjustable "on time" from 5s to 60s once activated
Download Specification Sheet

M-TOUCH-DIM16

In-line low voltage touch on/off/dimmer switch

For use with Metro M-LIGHT LEDs, M-LINEAR Fixtures, M-DRIVER Power supplies

  • Through hole mounting
  • Touch on/off
  • Touch and hold to dim
Download Specification Sheet

3 Way Switch

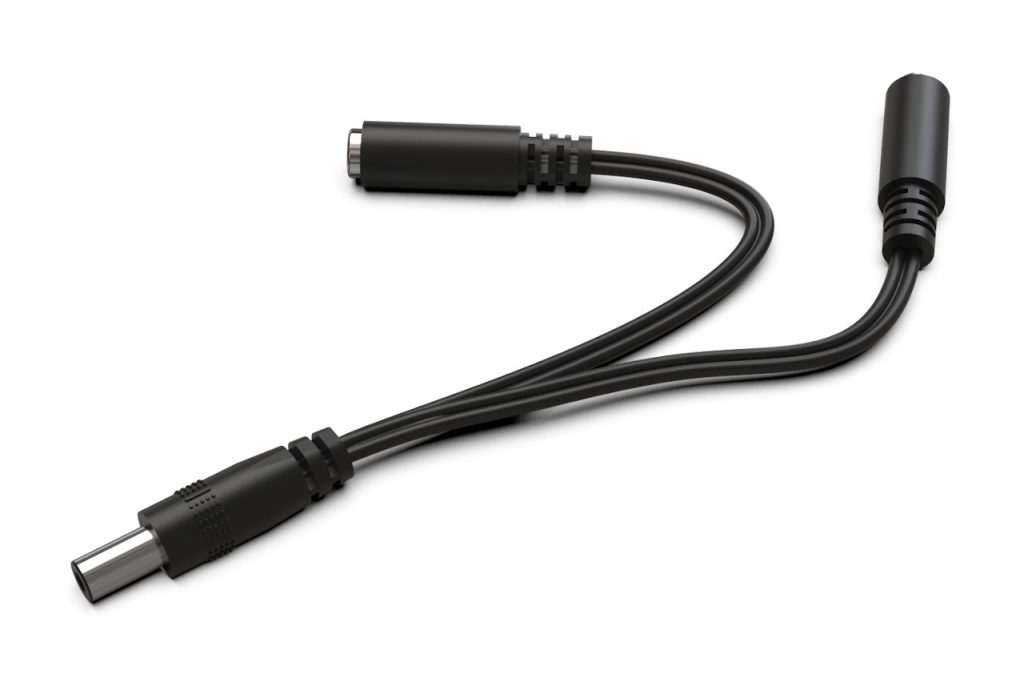

Reverse 2 to 1 Splitter

1 to 3 Splitter

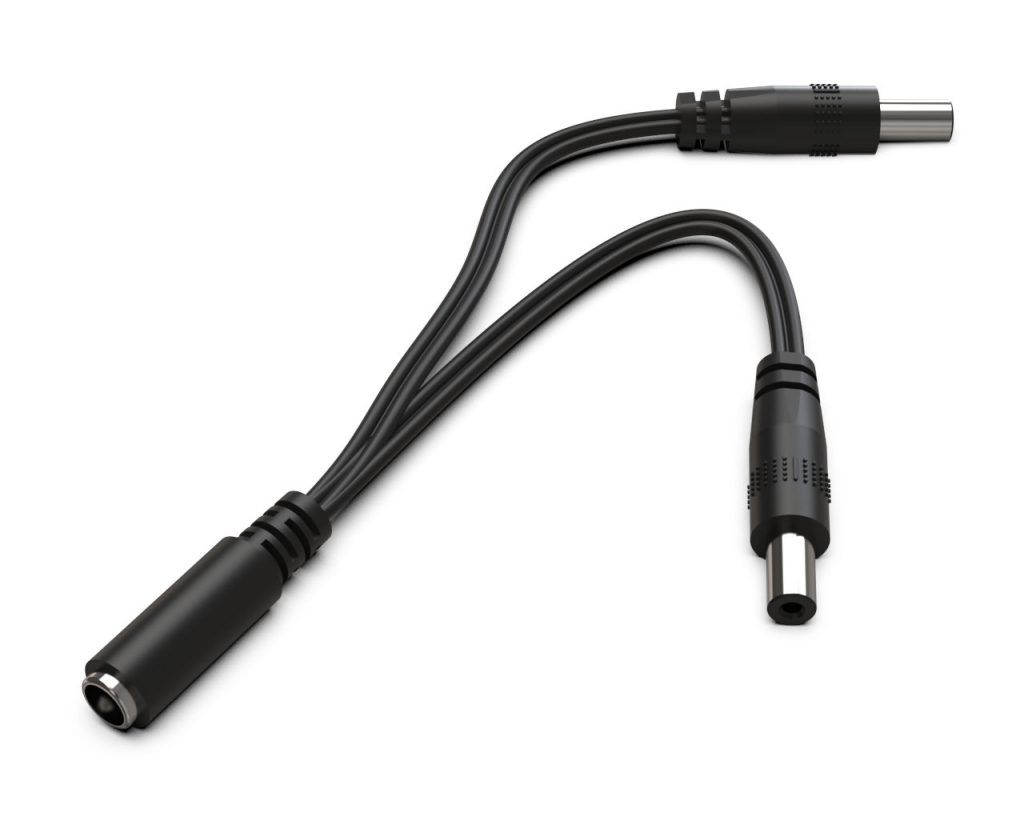

1 to 2 Splitter

10 Foot Jumper Cable
